One-touch fitting, a general purpose PBT material Applicable tubing from Ø 2 to Ø 16 Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2 Operating pressure range: -100 kPa to 1 MPa Fluid temperature: -5 to 60 °C, water: 0 to 40 °C With sealant.

Strengths

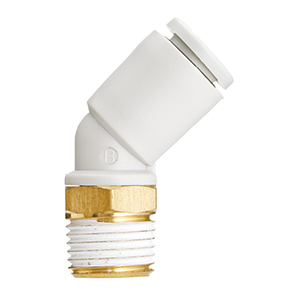

45° male elbow. Applicable Tubing O.D.: ø4, ø6, ø8, ø10, ø12, ø16, ø1/8, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8, ø1/2. Applicable Port Size: M5, M6, 1/8, 1/4, 3/8, 1/2, 10-32 UNF.

Technical specifications

Attributes

Material	C3604, PBT
Connection 1	10 mm
Profile	KQ2
Connection 2	R 1/4 in
Min. temperature	-5 °C
Max. temperature	60 °C

Show UNSPSC/ECL@SS

£ 6.58 ^{excl. VAT}

/ Each

£ 7.90 ^{incl. VAT}

Usually arrives within 14 working days

SMC KQ2K10-02NP ONE-TOUCH FITTING

Product details : SMC KQ2K10-02NP ONE-TOUCH FITTING
