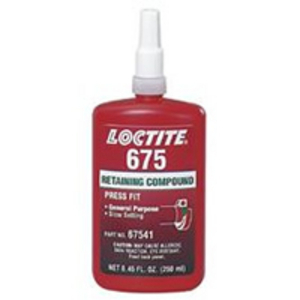

LOCTITE 675 HIGH STRENGTH LOW VISCOSITY SLOW CURE 250ML 195851

LOCTITE® 675 is a high-strength retaining compound designed for bonding cylindrical metal assemblies. It is ideal for interference fits and slip-fitted assemblies with close gaps. The low viscosity promotes penetration into small gaps, while the high strength helps maintain assemblies exposed to shock loads and vibration.

Features:
LOCTITE® 675 is a single-component, low-viscosity, high-strength, slow-curing retaining compound for cylindrical metal assemblies. The product cures when confined in the absence of air between close-fitting metal surfaces, helping to prevent loosening and leakage caused by shock loads, vibration and mechanical stress. The fluid consistency promotes penetration into close-clearance fits, keyways, splines, bearings and bushings. It is also suitable for strengthening press-fitted and close-fitting slip-fitted assemblies. The relatively slow fixture time provides additional time for component positioning before cure.

Specifications:
• Type: retaining compound.
• Technology: acrylic, anaerobic cure.
• Chemical basis: methacrylate.
• Number of components: 1.
• Physical form: liquid.
• Colour: green.
• Fluorescence: UV detectable.
• Viscosity at 25 °C: 100 to 150 mPa·s (Brookfield RVT, spindle 1, 50 rpm).
• Maximum diametral clearance: < 0.1 mm.
• Fixture time on steel: 45 min.
• Recommended for use with: metal (steel).
• Shear strength: 20 N/mm².
• Operating temperature range: -55 °C to +150 °C.

Standards:
• ISO 10123: standard defining test methods for anaerobic adhesives used in cylindrical assemblies. Certain performance characteristics of LOCTITE® 675, including cure speed and strength on shafts and hubs, are evaluated according to this test method.
