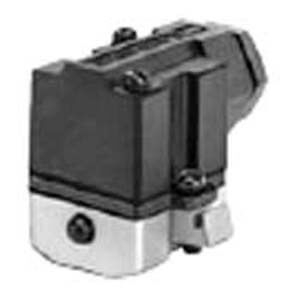

SMC D-A33 REED SWITCH 24VDC
Auto Switch
References
smc:D-A33
rubix:132A9912
Technical specifications
| Type | Auto Switch |
|---|---|
| Execution | D-A3 |
| Min. tension | 24 V |
Product details : SMC D-A33 REED SWITCH 24VDC
SMC offers a variety of auto switches for actuators and air grippers.; Reed switches are available in a general purpose type or with 2-color indication, which allows the optimum operating position to be determined by the color of the light. Magnetic field resistant, heat resistant and wide range detection configurations.; Various lead wire lengths are available.
•Electrical entry: Terminal Conduit.
•Application Load: Relay/PLC.
•Power voltage: 100, 200VAC/24V DC.
•Load current: 5 to 50mA.
•Applicable Actuator Series: CDA1, CDBA1, CDV3, CDVS, CDLA, CE2, CNA, CDL1, CDS1, RHC.
Model: A33 (DC Volt <24, LED)
•Application Load: Relay/PLC.
•Power voltage: 100, 200VAC/24V DC.
•Load current: 5 to 50mA.
•Applicable Actuator Series: CDA1, CDBA1, CDV3, CDVS, CDLA, CE2, CNA, CDL1, CDS1, RHC.
Model: A33 (DC Volt <24, LED)
Technical specifications
Attributes
| Logistic Weight | 23 g |
|---|---|
| Type | Auto Switch |
| Execution | D-A3 |
| Min. tension | 24 V |
| Max. tension | 24 V |
| Min. temperature | -10 °C |
| Max. temperature | 60 °C |
