SMC D-M9NL AUTO-SWITCH
Auto-Switch
References
smc:D-M9NL
rubix:80361731
Technical specifications
| Type | Auto Switch |
|---|---|
| Execution | D-M |
| Min. tension | 4.5 V |
Product details : SMC D-M9NL AUTO-SWITCH
SMC offers a variety of auto switches for actuators and air grippers.; Solid state switches are available in a general purpose type or with 2-color indication, which allows the optimum operating position to be determined by the color of the light.; Solid state switches are also available in 2-color indication with diagnostic output, water resistant 2-color indication, built-in OFF-delay timer (200 ms), magnetic field resistant, heat resistant and wide range detection configurations.; Various lead wire lengths are available.

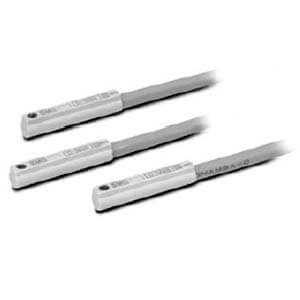

M9N/M9P/M9B, Solid State Switch, Direct Mounting, Grommet, In-line
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 28x5x4 mm |
|---|---|
| Logistic Weight | 37 g |
| Type | Auto Switch |
| Execution | D-M |
| Min. tension | 4.5 V |
| Max. tension | 28 V |
| Min. temperature | -10 °C |
| Max. temperature | 60 °C |
Show UNSPSC/ECL@SS
£ 35.54 excl. VAT
/ Each
£ 42.65 incl. VAT
In stock: Next day delivery
