SANDVIK R216.42-00530-HC05G1700 SC MILLING CM PLURA 2 5963274

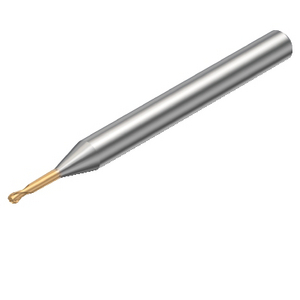

Ball-nose end mill CoroMill® Plura solid carbide R216.42-00530-HC05G1700
See technical informationReferences
Sandvik Coromant:R216.42-00530-HC05G1700
Rubix:320A2518
Manufacturer :5963274
EAN:25963274
Technical specifications
| Diameter | 0.5 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 4 mm |
Product details : SANDVIK R216.42-00530-HC05G1700 SC MILLING CM PLURA 2 5963274
Ball-nose end mill CoroMill® Plura solid carbide for micro-milling
Technical specifications
Attributes
| Diameter | 0.5 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 4 mm |
| Number of teeth | 2 |
| Length of cut | 0.35 mm |
| Total length | 45 mm |
| Centre cut | no |
| Cutting material | carbide |
| Coating | tialn coating |
| Type | ball nose end mill |
| Angle of helix | 30 ° |
| Machining material | steel, stainless steel, cast iron, non-ferrous materials, heat-resistant alloys, and high-hardness materials |
| Capacity length | 3 mm |
| Cutting angle | 15 ° |
Show UNSPSC/ECL@SS
£ 143.00 excl. VAT
/ Each
£ 171.60 incl. VAT
- Usually arrives within 14 working days
