SANDVIK R216.42-04030-AI04G1620 SC MILLING CM PLURA 2 5743504

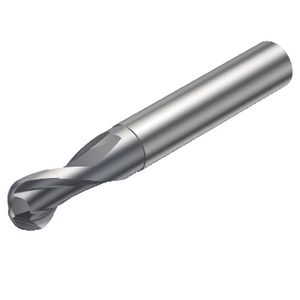

Ball nose end mill CoroMill® Plura solid carbide R216.42-04030-AI04G1620
See technical informationReferences
Sandvik Coromant:R216.42-04030-AI04G1620
Rubix:317A7233
Manufacturer :5743504
Product details : SANDVIK R216.42-04030-AI04G1620 SC MILLING CM PLURA 2 5743504
Ball nose end mill CoroMill® Plura solid carbide for profiling
Technical specifications
Attributes
| Diameter | 4 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 6 mm |
| Number of teeth | 2 |
| Length of cut | 4 mm |
| Total length | 57 mm |
| Centre cut | center cut |
| Cutting material | carbide |
| Coating | pvd tialn |
| Type | coromill® plura solid carbide ball nose end mill for profiling |
| Angle of helix | 30 ° |
| Machining material | hardened steel (48–63 hrc), steel and stainless steel (hrc ≤ 63 or hrc ≤ 48) and non-ferrous materials (including non-ferrous with silicon content ≤ 9%) |
| Capacity length | 4 mm |
| Cutting angle | 3 ° |
Show UNSPSC/ECL@SS
£ 96.25 excl. VAT
/ Each
£ 115.50 incl. VAT
- Usually arrives within 14 working days
