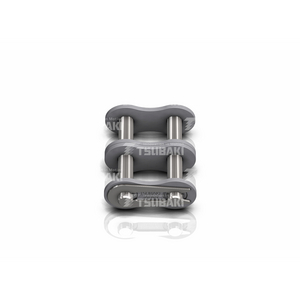

TSUBAKI 84101220002 CONNECTING LINK RS12B LAMBDA 2 NEPTUNE CL(P=3/4'')


BS Lambda Neptune Chain Connecting Link

References
tsubaki:RS12B 2 N.E.P. CL
rubix:267A1266
manufacturer :4101220002
ean:8718472789188
TSUBAKI CONNECTING LINK RS12B LAMBDA 2 NEPTUNE CL (P=3/4)
brand logo
Technical specifications
Chainbs neptune
Chain pitch19.05 mm
See all Specifications

Product details : TSUBAKI 84101220002 CONNECTING LINK RS12B LAMBDA 2 NEPTUNE CL(P=3/4'')


BS Lambda Neptune™ Chain is a Tsubaki BS Lambda chain that has undergone a special surface treatment. The link plates have a special two stage layer applied in order to provide the maximum protection from the operating or environmental conditions. This chain is suitable for use in applications that are subject to akaline cleaning and environments exposed to seawater, acid-rain and other adverse weather conditions. This chain does not contain any chemically hazardous substances such as Hexavalent Chromium, Lead, Cadmium and Mercury as regulated by RoHS.

Technical specifications


Attributes
Chainbs neptune
Chain pitch19.05 mm
Weight41 g
Inner width min.11.68 mm
Roller diameter12.07 mm
Plate height16.1 mm
Plate thickness1.8 mm
Pin length45.9 mm
Material301 stainless steel (spring clip)
Plate typeflat
Chain pin diameter5.72 mm
Show UNSPSC/ECL@SS
£ 13.90 excl. VAT
/ Each
£ 16.68 incl. VAT
  • Usually arrives within 14 working days
