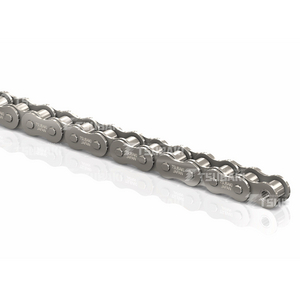

TSUBAKI 0232060000-M5 RF06B-NP-1 BS ROLLER CHAIN FOR CORROSIVE ENV 5M
BS NP Chain
References
tsubaki:RF06B NP 1 RP
rubix:267A0620
manufacturer :0232060000
ean:8718472017380
Technical specifications
| Chain pitch | 9.525 mm |
|---|---|
| Profile | Simplex (1) |
| Chain | 06B-1 |
Product details : TSUBAKI 0232060000-M5 RF06B-NP-1 BS ROLLER CHAIN FOR CORROSIVE ENV 5M
BS NP Chain is a Tsubaki BS chain that has been plated with Nickel. NP Chain has a light corrosion resistance and an attractive appearance. NP Chain is suitable for outdoor conditions exposed to water. There is a 15% reduction in Maximum Allowable Load compared to the corresponding BS chain, so please take this into account when making your chain selection. It has a working temperature range of: -10°C to +60°C.
Technical specifications
Attributes
| Logistic Weight | 2014 g |
|---|---|
| Chain pitch | 9.525 mm |
| Profile | Simplex (1) |
| Chain | 06B-1 |
| Roller diameter | 6.35 mm |
| Inner width min. | 5.72 mm |
| Chain length | 5000 mm |
| Pin length | 15.1 mm |
| Chain pin diameter | 3.27 mm |
| Weight | 2014 kg |
| Plate type | Round |
| Plate height | 8.2 mm |
| Plate thickness | 1.3 mm |
| Tensile strength min. | 9 kN |
Show UNSPSC/ECL@SS
£ 167.31 excl. VAT
/ Each
£ 200.77 incl. VAT
Usually arrives within 14 working days
