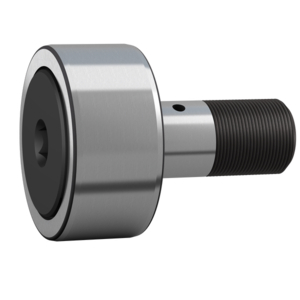

SKF KR 30 STUD-TYPE TRACK ROLLERS
Cam Follower (Stud-type Track Roller)
References
skf:KR 30
rubix:266A6777
ean:7316577011404
Technical specifications
| Inner diameter | 12 mm |
|---|---|
| Width | 14 mm |
| Sealing | Two rubber seals |
Product details : SKF KR 30 STUD-TYPE TRACK ROLLERS
Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. A narrow gap between the outer ring and the adjacent components forms a gap-type seal. The bearings can be relubricated via the stud.
Strengths
- High radial load carrying capacity
- Accommodate axial loads due to skew or tilting
- Long service life
- Easy to mount
- Sealed for increased reliability, with relubrication feature
- Accommodate axial loads due to skew or tilting
- Long service life
- Easy to mount
- Sealed for increased reliability, with relubrication feature
Technical specifications
Attributes
| Inner diameter | 12 mm |
|---|---|
| Width | 14 mm |
| Sealing | Two rubber seals |
| Material | Bearing steel |
| Outer diameter | 30 mm |
Show UNSPSC/ECL@SS
£ 46.20 excl. VAT
/ Each
£ 55.44 incl. VAT
Usually arrives within 14 working days
