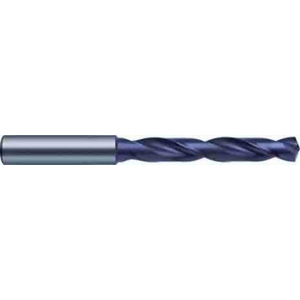

GUHRING 05515 003.000 RATIO DRILL SOLID CARBIDE 3.000MM

GUHRING 05515 003.000 RATIO DRILL SOLID CARBIDE 3.000MM

Carbide Drill

References
gühring:9055150030000
rubix:80126588
ean:4031093599153
Technical specifications
Drilling diameter3 mm
Total length66 mm
Length of cut28 mm
See all Specifications

Product details : GUHRING 05515 003.000 RATIO DRILL SOLID CARBIDE 3.000MM

Guhring Number 5515 5xD Cylindrical shank Solid Carbide Non-Oil feed drill Futura coated ideally suited for drilling of most ferrous and non-ferrous materials From 3-20mm
Carbide Drill 3 mm Cylindrical Shape 66 mm Length

Strengths

•Facet point grind
•Main cutting edge form straight
•Optimized cutting geometry

Technical specifications

Attributes
Drilling diameter3 mm
Total length66 mm
Length of cut28 mm
Din standardDIN 6537;DIN 6537L
Angle of helix140 °
Tolerancem7
Ratio of diameter to length of drill hole3/66 mm
Direction of cuttingRight
Tail diameter6 mm
CoatingNano FIREX
TailStraight
Tip angle140 °
Machining materialSteel;Stainless Steel;Cast Iron;Aluminium;Titanium Alloys;Hardened Steel
Internal coolingNo
Show UNSPSC/ECL@SS
£ 36.82 excl. VAT
/ Each
£ 44.18 incl. VAT

  • Delivery within 10-15 business days
