Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in tight areas. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 requirements and performance requirements of EN 857 2SC and EN 853 2SN. Recommended Couplings: GlobalSpiral™ Couplings (-6 through -20), GlobalSpiral™ Plus Couplings (-24 and -32), MegaCrimp® Couplings (-4 through -20), and Stainless Steel B Couplings.

Strengths

SBR Base

Applications

For high-pressure hydraulic applications. Easily handled and installed in restricted areas.

Technical specifications

Attributes

Logistic Weight	804 g
Inner diameter	19 mm
Max. service pressure	215 bar
Min. temperature	-40 °C
Max. temperature	100 °C
Exterior diameter (inch)	1,09 ''
Outer diameter	27.8 mm
Material thickness	4,4 mm
Bend radius	120 mm
Material	SBR/NBR/Steel wire
No-burst pressure	860 bar

Show UNSPSC/ECL@SS

£ 18.60 ^{excl. VAT}

/ Each

£ 22.32 ^{incl. VAT}

Usually arrives within 14 working days

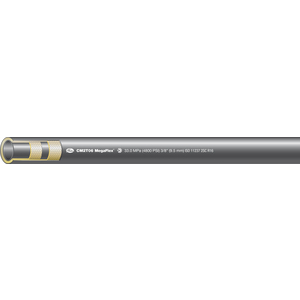

GATES HYDRAULIC HOSE CM2T12XRL50

Product details : GATES HYDRAULIC HOSE CM2T12XRL50
