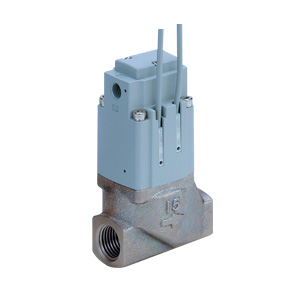

SMC SGCA421A-10G25 COOLANT VALVE
Coolant Valve
References
smc:SGCA421A-10G25
rubix:125A5748
Product details : SMC SGCA421A-10G25 COOLANT VALVE
Air Operated.
Applicable fluid: Coolant.
Large flow rates, up to 1000 l/min.
Long service life, up to 5 million cycles.
Low power consumption 0.35 W.
Auto switches can be mounted in SGC 2, 3 and 4.
Applicable fluid: Coolant.
Large flow rates, up to 1000 l/min.
Long service life, up to 5 million cycles.
Low power consumption 0.35 W.
Auto switches can be mounted in SGC 2, 3 and 4.
Series: 4 (SGC400)
Valve Type: 1 (Normally Closed)
Seal Material: A (NBR)
Pressure Range: 10 (0 to 1 MPa)
Thread: G (G (ISO1179))
Port Size: 25 (1)
Bracket Mounting Position: Without Bracket
Auto Switch: Without Autoswitch (Without Magnet)
Lead Wire Length: 0.5 m (Or None in the Case of No Switch)
Number: 2 pcs. (Or None in the Case of No Switch)
Valve Type: 1 (Normally Closed)
Seal Material: A (NBR)
Pressure Range: 10 (0 to 1 MPa)
Thread: G (G (ISO1179))
Port Size: 25 (1)
Bracket Mounting Position: Without Bracket
Auto Switch: Without Autoswitch (Without Magnet)
Lead Wire Length: 0.5 m (Or None in the Case of No Switch)
Number: 2 pcs. (Or None in the Case of No Switch)
Technical specifications
Attributes
| Logistic Weight | 1700 g |
|---|---|
| Type | Coolant Valve |
| Connecting diameter (inch) | 1 '' |
| Type of coupling | G |
| Min. temperature | -5 °C |
| Max. temperature | 60 °C |
Show UNSPSC/ECL@SS
£ 235.17 excl. VAT
/ Each
£ 282.20 incl. VAT
Delivery usually within ( 4 ) days
