SNR 6307N DEEP GROOVE BALL BEARING

Deep groove ball bearing SNR 6307N, Outer diameter: 80 mm | Width: 21 mm | Inner diameter: 35 mm

Deep groove ball bearings, single row

See technical informationSee documents
References
SNR:6307N
Rubix:205A0289
EAN:3413520147280
brand logo
brand logo
brand logo
Technical specifications
Inner diameter35 mm
Outer diameter80 mm
Width21 mm
See all Specifications
Documents

Product details : SNR 6307N DEEP GROOVE BALL BEARING

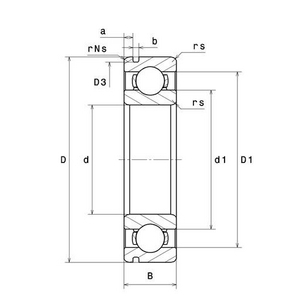

Deep groove ball bearing, radial contact, sheet metal cage, groove for snap ring on outside diameter, open

Technical specifications

Attributes
Logistics dimensions (L x W x H)84x27x84 mm
Logistic Weight436 g
Inner diameter35 mm
Outer diameter80 mm
Width21 mm
Sealingopen
Bearing Clearancecn
Series6300
Cagesteel
Reference speed9900 rpm
Limit speed14000 rpm
Basic static load, radial - C0r19200 N
Basic dynamic load, radial - Cr33000 N
Weight0.446 kg
Show UNSPSC/ECL@SS
£ 15.68 excl. VAT
/ Each
£ 18.82 incl. VAT
  • Delivery usually within ( 3 ) days
