DORMER S5243.0XR0.3 6706649

End mills S524

See technical information

References

Dormer:S5243.0XR0.3
Rubix:376A3869
EAN:7320760681985

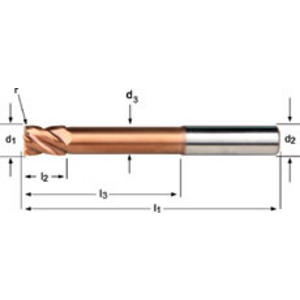

End Mill 3.0XR0.3
End Mill 3.0XR0.3
End Mill 3.0XR0.3

Technical specifications

Diameter3 mm
Type of tailha
Tail diameter6 mm
See all Specifications

Product details : DORMER S5243.0XR0.3 6706649

VHM 4-flute corner-radius end mill with extra short cutting-edge length. Necked shank with long projection length. DIN 6335 HA cylindrical shank. 40° helix and -6° rake angle. TiSiN coated for hardened steel >49 HRC.

Applications

• Hardened alloy steel (49 - 55 HRC >1620 N/mm²)
• Hardened alloy steel (55 - 63 HRC > 1980 N/mm²)

Technical specifications

Attributes
Diameter3 mm
Type of tailha
Tail diameter6 mm
Number of teeth4
Length of cut5 mm
Total length75 mm
Cutting materialcarbide
Coatingtisin
Machining materialhardened steel
£ 65.50 excl. VAT
/ Each
£ 78.60 incl. VAT
  • Usually arrives within 14 working days
