DORMER S52110.0XR2.0 6706680

DORMER S52110.0XR2.0 6706680

Finger mills S521

See technical information
References
Dormer:S52110.0XR2.0
Rubix:376A3829
EAN:7320760682296

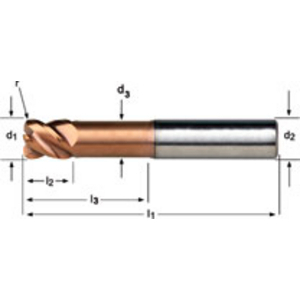

End Mill 10.0XR2.0
End Mill 10.0XR2.0
End Mill 10.0XR2.0
Technical specifications
Diameter10 mm
Type of tailha
Tail diameter10 mm
See all Specifications

Product details : DORMER S52110.0XR2.0 6706680

Solid carbide (VHM) 4-flute corner radius end mill with extra short cutting edge length. Necked shank with short projection length. DIN 6335 HA cylindrical shank. 45° helix and -10° rake angle. TiSiN coated for hardened steel >49 HRC.

Applications

• Hardened alloy steel (49 - 55 HRC >1620 N/mm²)
• Hardened alloy steel (55 - 63 HRC > 1980 N/mm²)

Technical specifications

Attributes
Diameter10 mm
Type of tailha
Tail diameter10 mm
Number of teeth4
Length of cut11 mm
Total length70 mm
Cutting materialcarbide
Coatingtisin
Machining materialhardened steel
Show UNSPSC/ECL@SS
£ 114.43 excl. VAT
/ Each
£ 137.32 incl. VAT
  • Usually arrives within 14 working days
