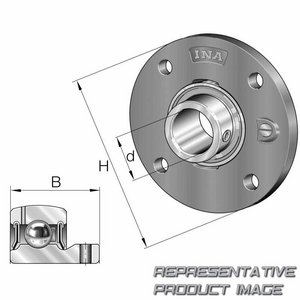

FAG UCFL201-J7 FLANGED HOUSING UNIT UCFL

Flanged housing unit

FAG:UCFL201-J7

Rubix:238A4996

Manufacturer :0821552080000

EAN:4047643336901

Inner diameter	12 mm
Width	60 mm
Fixation centre-to-centre distance	90 mm

Product details : FAG UCFL201-J7 FLANGED HOUSING UNIT UCFL

Flanged housing unit UCFL

Attributes

Logistic Weight	480 g
Inner diameter	12 mm
Width	60 mm
Fixation centre-to-centre distance	90 mm
Material	grey cast iron housing; bearing insert made of standard bearing steel
Height	33.3 mm
Length	113 mm
Series	ucfl
Total bearing width	31 mm
Diameter of fixation holes	12 mm
Number of holes	2
Basic static load, radial - C0r	6600 N
Basic dynamic load, radial - Cr	12800 N
Outer diameter	33.3 mm
Weight	0.47 kg
Mounting typ	two‑bolt flanged housing unit (oval), cast iron housing; set‑screw locking inner ring

Show UNSPSC/ECL@SS

£ 13.70 ^{excl. VAT}

/ Each

£ 16.44 ^{incl. VAT}
