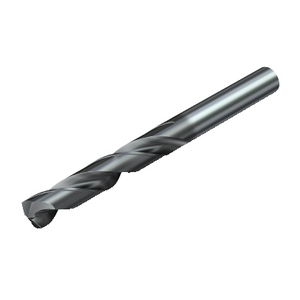

SANDVIK 460.1-1350-041A0-XM GC34 460 SOLID CARBIDE DRILL 6241471
Helicoidal carbide solid drill bit Sandvik Coromant
References
sandvik coromant:460.1-1350-041A0-XMGC34
rubix:242A9021
manufacturer :6241471

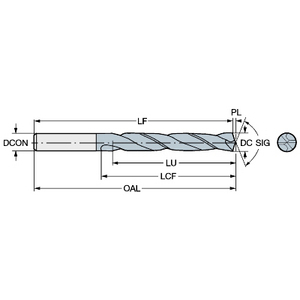

Technical specifications
| Drilling diameter | 13.5 mm |
|---|---|
| Total length | 107 mm |
| Length of cut | 42.5 mm |
Product details : SANDVIK 460.1-1350-041A0-XM GC34 460 SOLID CARBIDE DRILL 6241471
G34 CoroDrill® 460 solid carbide drill is part of the CoroDrill 460 product family. CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. This drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
Strengths
High productivity and consistent tool life
Exceptional value with no compromise on quality
Excellent hole quality
Outstanding coating and flute design leading to smooth and efficient chip evacuation
Exceptional value with no compromise on quality
Excellent hole quality
Outstanding coating and flute design leading to smooth and efficient chip evacuation
Technical specifications
Attributes
| Drilling diameter | 13.5 mm |
|---|---|
| Total length | 107 mm |
| Length of cut | 42.5 mm |
| Din standard | 6535-HA |
| Tolerance | h6 |
| Ratio of diameter to length of drill hole | 3,14815 |
| Tail diameter | 14 mm |
| Coating | TiAlN |
| Tip angle | 140 ° |
| Internal cooling | Yes |
Show UNSPSC/ECL@SS
£ 93.75 excl. VAT
/ Each
£ 112.50 incl. VAT
Usually arrives within 14 working days
