Insert bearing with set screw SKF YAR 205-2LPW/SS, Outer diameter: 52 mm | Inner diameter: 25 mm | Width: 15 mm
Insert Bearing
References
skf:YAR 205-2LPW/SS
rubix:200A1531
ean:7316577848451
Technical specifications
| Inner diameter | 25 mm |
|---|---|
| Outer diameter | 52 mm |
| Width | 15 mm |

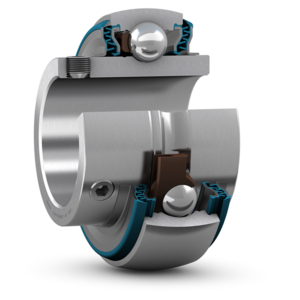

Product details : SKF YAR205-2LPW/SS STAINLESS STEEL BEARING INSERT FOR FOODLINE UNIT
Radial insert ball bearings are based on sealed deep groove ball bearings. This design is suitable for applications with constant and alternating directions of rotation. The inner ring, which is wider on both sides, is fastened to the shaft by tightening two fastening screws, making it easy to install.
Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.
Strengths
- Designed for constant and alternating rotary movements
- Quick and easy mounting on the shaft
- Absorption of installation-related misalignments
- Long service life
- Reduced noise and vibration level
Technical specifications
Attributes
| Inner diameter | 25 mm |
|---|---|
| Outer diameter | 52 mm |
| Width | 15 mm |
| Series | YAR |
| Material | Stainless steel |
| Limit speed | 4300 rpm |
| Total bearing width | 34.1 mm |
| Basic static load, radial - C0r | 7800 N |
| Basic dynamic load, radial - Cr | 11900 N |
| Sealing | Two rubber seals |
| Weight | 0.189 kg |
Show UNSPSC/ECL@SS
£ 83.75 excl. VAT
/ Each
£ 100.50 incl. VAT
Usually arrives within 14 working days
