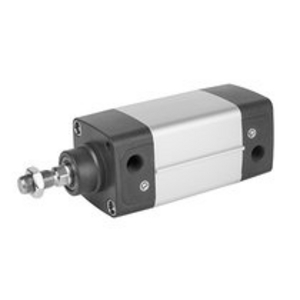

AVENTICS R480058830 ISO 15552 SERIES CCL-IS
ISO 15552, series CCL-IS
References
aventics:R480058830
rubix:272A4794
ean:3666750034022
Technical specifications
| Cylinder diameter | 32 mm |
|---|---|
| Cylinder stroke | 50 mm |
| Type | iso cylinder |
Product details : AVENTICS R480058830 ISO 15552 SERIES CCL-IS
Strengths
•Easy to clean anodized surfaces
Scrapers and lubricants (NSF-H1) are approved for food applications
Hygienic protective caps for unused mounting holes
Available in eight sizes covering piston diameters from 25 mm to 125 mm
Selection from elastic or pneumatic cushioning possible
Option to configure the air connections for supply and exhaust on rear cover, which increases flexibility when designing the system's tubing concept
Scrapers and lubricants (NSF-H1) are approved for food applications
Hygienic protective caps for unused mounting holes
Available in eight sizes covering piston diameters from 25 mm to 125 mm
Selection from elastic or pneumatic cushioning possible
Option to configure the air connections for supply and exhaust on rear cover, which increases flexibility when designing the system's tubing concept
Technical specifications
Attributes
| Cylinder diameter | 32 mm |
|---|---|
| Cylinder stroke | 50 mm |
| Type | iso cylinder |
| Min. temperature | -20 °C |
| Max. temperature | 80 °C |
| Inserted rod height | 192 mm |
Show UNSPSC/ECL@SS
£ 158.38 excl. VAT
/ Each
£ 190.06 incl. VAT
Delivery usually within ( 11 ) days
