DORMER C30528.0 DRILL 28.00 MM 5984365
Key-way cutter C305
References
dormer:C30528.0
rubix:1070007
ean:7320760572375
Technical specifications
| Diameter | 28 mm |
|---|---|
| Type of tail | WELDON |
| Tail diameter | 25 mm |
Product details : DORMER C30528.0 DRILL 28.00 MM 5984365
HSS-E-PM mid-length key-way cutter with weld-on shaft DIN 844K N 30° uncoated 3-cutter for non-alloyed steel <850 N/mm². Titanium. Nickel and copper alloys.
Applications
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Titanium non-alloyed (<200 HB <700 N/mm²)
• nickel non-alloyed (<200 HB <700 N/mm²)
• nickel alloy (<270 HB >900 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Titanium non-alloyed (<200 HB <700 N/mm²)
• nickel non-alloyed (<200 HB <700 N/mm²)
• nickel alloy (<270 HB >900 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)

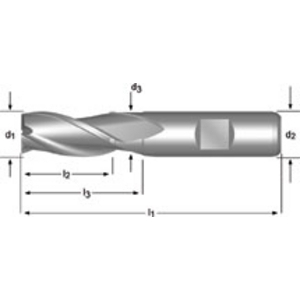

Technical specifications
Attributes
| Diameter | 28 mm |
|---|---|
| Type of tail | WELDON |
| Tail diameter | 25 mm |
| Number of teeth | 3 |
| Total length | 121 mm |
| Body material | HSS-E / PM |
| Capacity length | 45 mm |
| Cutting angle | 30 ° |
Show UNSPSC/ECL@SS
£ 216.90 excl. VAT
/ Each
£ 260.28 incl. VAT
Usually arrives within 14 working days
