DORMER C123 5.5MM HSCO-XP F/SHANK 2 FLUTE S/LENGTH S/DRILL
Key-way cutter C123
References
dormer:C1235.5
rubix:2012166
ean:7320760353806
Technical specifications
| Diameter | 5.5 mm |
|---|---|
| Type of tail | Weldon shaft |
| Tail diameter | 6 mm |
Product details : DORMER C123 5.5MM HSCO-XP F/SHANK 2 FLUTE S/LENGTH S/DRILL
HSS-E-PM mid-length key-way cutter with weld-on shaft DIN 844K N 30° uncoated 2-cutter for non-alloyed steel <700 N/mm². Titanium. Nickel and copper alloys.
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Titanium non-alloyed (<200 HB <700 N/mm²)
• nickel non-alloyed (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Titanium non-alloyed (<200 HB <700 N/mm²)
• nickel non-alloyed (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)

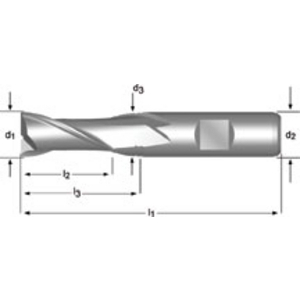

Technical specifications
Attributes
| Diameter | 5.5 mm |
|---|---|
| Type of tail | Weldon shaft |
| Tail diameter | 6 mm |
| Number of teeth | 2 |
| Total length | 57 mm |
| Body material | HSS-E / PM |
| Machining material | Unalloyed steels, titanium, nickel and copper alloys |
| Capacity length | 13 mm |
| Cutting angle | 30 ° |
Show UNSPSC/ECL@SS
£ 33.05 excl. VAT
/ Each
£ 39.66 incl. VAT
Delivery within 10-15 business days
