DORMER HSCO-XP SUPER-R CUTTER 6.5 C1396.5
Key-way cutters C139
References
dormer:C1396.5
rubix:1068478
ean:7320760573631
Technical specifications
| Diameter | 6.5 mm |
|---|---|
| Type of tail | weldon |
| Tail diameter | 10 mm |
Product details : DORMER HSCO-XP SUPER-R CUTTER 6.5 C1396.5
HSS-E-PM Mid-length key-way cutter with weld-on shaft DIN 844K N 30° Super-R coated 2-cutter for steel <850 N/mm². Cast iron. Titanium and nickel alloys <900 N/mm² and copper alloys.
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Nickel non-alloyed (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Nickel non-alloyed (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)

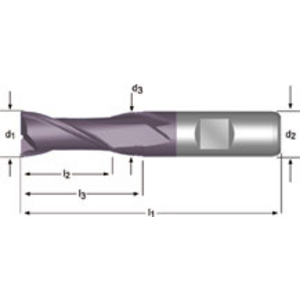

Technical specifications
Attributes
| Diameter | 6.5 mm |
|---|---|
| Type of tail | weldon |
| Tail diameter | 10 mm |
| Number of teeth | 2 |
| Total length | 66 mm |
| Body material | hss-e / pm |
| Capacity length | 16 mm |
| Cutting angle | 30 ° |
Show UNSPSC/ECL@SS
£ 49.45 excl. VAT
/ Each
£ 59.34 incl. VAT
Usually arrives within 14 working days
