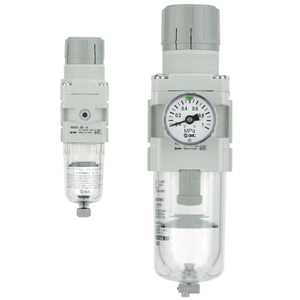

SMC AW30-F03BG-A FILTER REGULATOR

This combination Filter/ Regulator minimizes space and piping by integrating the 2 units into one. Standard features include a relieving regulator, which can be quickly locked by pushing down on the adjustment knob. There are many options, which include gauges, auto-drain, metal bowl and covers, different set pressures, etc. The AW-A is part of the family of modular air preparation units and can be combined with other similar sized products. This series is available in 3 body sizes with piping from 1/8 to 3/4 in Rc, NPT or G thread types.

•Modular type filter regulator

Integrated filter and regulator save space

Requires less piping

Optional embedded pressure gauge

Available with built-in backflow mechanism

Rc, G(PF) or NPT threads

Size: 30
Thread: F (G)
Port Size: 03 (3/8)
Accessory: BG (Bracket + Round type pressure gauge [with limit indicator])
Set pressure: 0.05 to 0.7 MPa setting
Bowl: Polycarbonate Bowl
Drain port/Exhaust mechanism/Flow direction: None
Pressure Unit: Name Plate and Pressure Gauge
Made to Order: None
