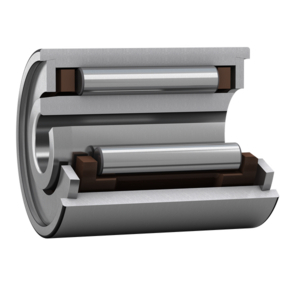

SKF NEEDLE ROLLER BEARING NKI 5/12 TN
Needle Roller Bearing
References
skf:NKI 5/12 TN
rubix:100A4207
manufacturer :14297
ean:7316571077376
Technical specifications
| Inner diameter | 5 mm |
|---|---|
| Outer diameter | 15 mm |
| Width | 12 mm |
Product details : SKF NEEDLE ROLLER BEARING NKI 5/12 TN
Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two non-separable closure rings that act as flanges to guide the bearing axially.
Strengths
- High radial load carrying capacity
- High stiffness
- Low cross-sectional height
- Accommodate axial displacement in both directions
- Separable design
- High stiffness
- Low cross-sectional height
- Accommodate axial displacement in both directions
- Separable design
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 12x15x15 mm |
|---|---|
| Logistic Weight | 12 g |
| Inner diameter | 5 mm |
| Outer diameter | 15 mm |
| Width | 12 mm |
| Bearing Clearance | CN |
| Series | NKI |
| Material | Bearing steel |
| Cage | Polyamide |
| Reference speed | 32000 rpm |
| Limit speed | 36000 rpm |
| Number of rows | 1 |
| Basic static load, radial - C0r | 4.25 N |
| Basic dynamic load, radial - Cr | 3.8 N |
| Sealing | Open |
