References
SNR:SUCP207CO
Rubix:205A8775
Manufacturer :SUCP.207.CO
EAN:3413529548576
Technical specifications
| Inner diameter | 35 mm |
|---|---|
| Fixation centre-to-centre distance | 127 mm |
| Shaft Height | 47.6 mm |

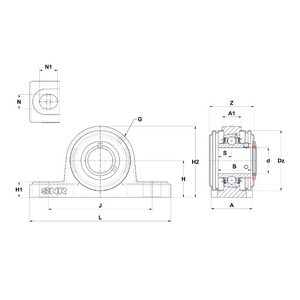

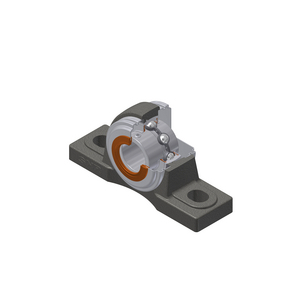

Product details : SNR SUCP207CO BEARING UNIT
stainless steel cast housing, stainless steel insert ball bearing with socket set screws,seal with slinger, food grease
NIRO pillow block bearing unit with 2 elongated holes for mounting, re-greasable, NIRO insert with double-sided extended inner ring with set-screw fixation on the shaft.
Technical specifications
Attributes
| Inner diameter | 35 mm |
|---|---|
| Fixation centre-to-centre distance | 127 mm |
| Shaft Height | 47.6 mm |
| Material | stainless steel housing (aisi 304), insert bearing races & balls: 440c (sus440c), cage: 302 stainless steel; seals/slinger: 302 stainless steel + silicone rubber. |
| Outer diameter | 72 mm |
| Clamping | 17.5 mm |
| Diameter of fixation holes | 14 mm |
| Mounting typ | pillow block |
| Height | 47.6 mm |
| Length | 167 mm |
| Sealing | déflecteur en acier inoxydable avec joint en caoutchouc silicone (joint de contact / étanchéité de type déflecteur). |
| Lubrication | h1 food-grade grease (fda/nsf h1); h1 solid polymer (fg1) option available. |
| Series | sucp200 |
| Weight | 1.87 kg |
| Number of holes | 2 |
| Basic static load, radial - C0r | 15600 N |
| Basic dynamic load, radial - Cr | 20100 N |
| Width | 42.9 mm |
Show UNSPSC/ECL@SS
£ 133.49 excl. VAT
/ Each
£ 160.19 incl. VAT
- Usually arrives within 14 working days
