References
SMC:KQ2R06-08A1
Rubix:393A2718
Manufacturer :KQ2R06-08A1
Technical specifications
| Connection 1 | 6 |
|---|---|
| Material | c3604, pbt, pp (body);c3604 (stud);304 stainless steel(chuck);304 stainless steel, c3604, pbt (guide);pom (collet, release button);nbr (seal, o-ring);304 stainless steel, nbr (gasket) |
Documents

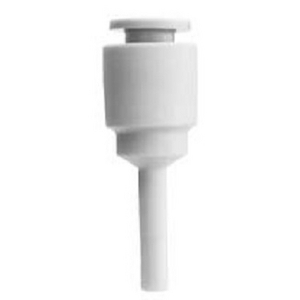

Product details : SMC KQ2R06-08A1 FITTING 6 TUBE 8 TUBE
KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
Strengths
•Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Release collar allows easy removal of tubing without damaging the tube
Technical specifications
Attributes
| Connection 1 | 6 |
|---|---|
| Material | c3604, pbt, pp (body);c3604 (stud);304 stainless steel(chuck);304 stainless steel, c3604, pbt (guide);pom (collet, release button);nbr (seal, o-ring);304 stainless steel, nbr (gasket) |
| Length | 31.6 mm |
| Min. temperature | -5 °C |
| Connection 2 | 8 |
| Max. temperature | 60 °C |
| Service pressure | 10 bar |
| Type of fluid | air, water |
| Metric exterior tube diameter | 6 mm |
| Metric exterior tube diameter 2 | 8 mm |
Show UNSPSC/ECL@SS
£ 2.71 excl. VAT
/ Each
£ 3.25 incl. VAT
- Usually arrives within 14 working days
