NSK SNN512-610+FS PLUMMER BLOCK
Plummer Block Housing
References
nsk:SNN512-610+FS
rubix:254A5841
Technical specifications
| Inner diameter | 55 mm |
|---|---|
| Shaft Height | 70 mm |
Product details : NSK SNN512-610+FS PLUMMER BLOCK

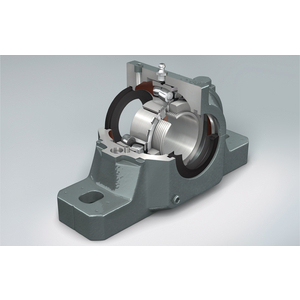

The SNN 500 and 600 series comprise a number of housings which, when combined with different seal options and ball or spherical roller bearings, provide an answer for most plummer block applications with shaft diameters ranging from 20 mm to 140 mm.
Strengths
•The bearing seating is protected against corrosion, all the non machined internal parts are primed
Each housing is supplied with a straight grease nipple
Each SNN housing is supplied with 2 lubrication holes on the cap and 1 drain hole on the base
Each housing is supplied with a straight grease nipple
Each SNN housing is supplied with 2 lubrication holes on the cap and 1 drain hole on the base
Technical specifications
Attributes
| Inner diameter | 55 mm |
|---|---|
| Shaft Height | 70 mm |
| Material | Cast Iron |
| Fixation centre-to-centre distance | 210 mm |
| Height | 134 mm |
| Length | 255 mm |
| Series | SNN |
| Number of holes | 2 |
| Outer diameter | 110 mm |
| Width | 110 mm |
Show UNSPSC/ECL@SS
£ 59.61 excl. VAT
/ Each
£ 71.53 incl. VAT
Usually arrives within 14 working days
