GATES POLYCHAIN2 BELT 14M PC2 14MGT 2240 20
Poly Chain GT2 Timing Belt
References
gates:PC2 14MGT 2240 20
rubix:104A1387
manufacturer :9275-09217
ean:5412571232585
Technical specifications
| Profile | 14MGT |
|---|---|
| Primitive length | 2240 mm |
| Belt width | 20 mm |
Product details : GATES POLYCHAIN2 BELT 14M PC2 14MGT 2240 20
Strengths
• Significantly higher power transfer: up to 30% more than previous generations.
• Lower maintenance costs thanks to a longer service life.
• Compact, light and cost-saving drives.
• Extremely resistant to tooth displacement.
• Lubrication is unnecessary.
• Static conductive according to ISO 5 3-standard and can be used environments with risk of explosion. Certificates are supplied at request.
• Suitable for HTD® type pulleys.
• Lower maintenance costs thanks to a longer service life.
• Compact, light and cost-saving drives.
• Extremely resistant to tooth displacement.
• Lubrication is unnecessary.
• Static conductive according to ISO 5 3-standard and can be used environments with risk of explosion. Certificates are supplied at request.
• Suitable for HTD® type pulleys.
Applications
Industrial Application
Technical specifications
Attributes

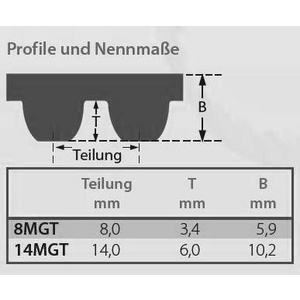

| Profile | 14MGT |
|---|---|
| Primitive length | 2240 mm |
| Belt width | 20 mm |
| Pitch | 14 mm |
| Height | 10.2 mm |
Show UNSPSC/ECL@SS
£ 436.07 excl. VAT
/ Each
£ 523.28 incl. VAT
Usually arrives within 14 working days
