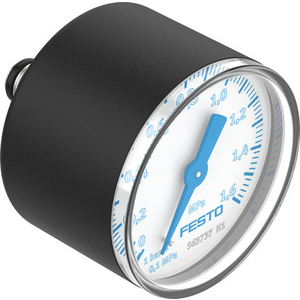

FESTO 563737 PRESSURE GAUGE
Pressure Gauge
References
festo:PAGN-40-1.6M-P10
rubix:391A5191
manufacturer :563737
ean:4052568056919
Technical specifications
| Type | Pressure Gauge |
|---|---|
| Min. service pressure | 0 bar |
| Max. service pressure | 16 bar |
Product details : FESTO 563737 PRESSURE GAUGE
Pressure gauge PAGN-40-1.6M-P10 With display unit in Mpa. Indicating range [MPa]=0 - 1,6 MPa, Conforms to standard=EN 837-1, Nominal size of pressure gauge=40, Design structure=Bourdon-tube pressure gauge, Mounting type=Line installation
Technical specifications
Attributes
| Logistic Weight | 55,95 g |
|---|---|
| Type | Pressure Gauge |
| Min. service pressure | 0 bar |
| Max. service pressure | 16 bar |
| Material | ABS (Housing);PS (Inspection Window);Brass (Screwed Trunnion) |
Show UNSPSC/ECL@SS
£ 15.70 excl. VAT
/ Each
£ 18.84 incl. VAT
Usually arrives within 14 working days
