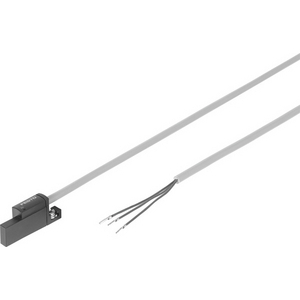

FESTO 2427616 PROXIMITY SENSOR
Proximity switch SDBT-BSW
References
festo:SDBT-BSW-1L-PU-W-5-N-LE
rubix:391A5982
manufacturer :2427616
ean:4052568265007
Technical specifications
| Type | SDBT |
|---|---|
| Min. tension | 10 V |
| Max. tension | 30 V |
Product details : FESTO 2427616 PROXIMITY SENSOR
Electronic proximity switch for T-slot, can be inserted from above, welding field resistant 50-60Hz AC and 1000Hz MFDC
Strengths
- Measuring principle: magneto-resistive
- Welding field immune
- Resistant to welding spatter
- For contactless piston rod position sensing on Festo pneumatic cylinders, especially the hinge cylinders DW/DWA/DWB/DWC for the automotive and tier 1 supplier industry
- Insertable in the slot from above, screw-clamped
- LED switching status indication
- Cable length 0.3 ... 5 m
Technical specifications
Attributes
| Logistic Weight | 130,61 g |
|---|---|
| Type | SDBT |
| Min. tension | 10 V |
| Max. tension | 30 V |
| Material | Epoxy resin, PA reinforced, high-alloy stainless steel, PVC |
Show UNSPSC/ECL@SS
£ 58.87 excl. VAT
/ Each
£ 70.64 incl. VAT
Usually arrives within 14 working days
