Standard series
Wide range of variants: wide selection for maximum flexibility in standard applications
PBT and nickel-plated brass
Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/QS

Technical specifications

Attributes

Logistic Weight	68,1 g
Connection 1	R 1/2 in
Connection 2	16 mm
Length	41.3 mm
Type of threading	Sheet metal
Max. temperature	80 °C
Min. temperature	-10 °C
Material	Nickel-Plated Brass (Housing);POM (Release Ring);NBR (Tubing Seal);High-Alloy Stainless Steel (Tubing Clamp Component)

Show UNSPSC/ECL@SS

£ 9.66 ^{excl. VAT}

/ Each

£ 11.59 ^{incl. VAT}

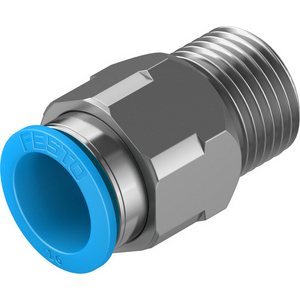

FESTO 153011 PUSH-IN FITTING QS-1/2-16
