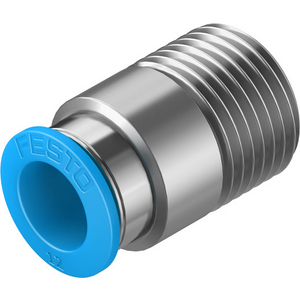

FESTO 153021 PUSH-IN FITTING QS-1/2-12-I
Push-in Fitting
References
festo:QS-1/2-12-I
rubix:116A0603
manufacturer :153021
ean:4052568031251
Technical specifications
| Connection 1 | R 1/2 in |
|---|---|
| Connection 2 | 12 mm |
Product details : FESTO 153021 PUSH-IN FITTING QS-1/2-12-I
Push-in fitting QS-1/2-10-I male thread with internal Hexagon socket. Size=Standard, Nominal size=5 mm, Type of seal on screw-in stud=coating, Assembly Position=Any, Container size=1
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 42x27x27 mm |
|---|---|
| Logistic Weight | 48,97 g |
| Connection 1 | R 1/2 in |
| Connection 2 | 12 mm |
| Length | 33.9 mm |
| Type of threading | Sheet metal |
| Max. temperature | 80 °C |
| Min. temperature | -10 °C |
| Material | Nickel-Plated Brass (Housing);POM (Release Ring);NBR (Tubing Seal);High-Alloy Stainless Steel (Tubing Clamp Component) |
Show UNSPSC/ECL@SS
£ 5.64 excl. VAT
/ Each
£ 6.77 incl. VAT
Delivery usually within ( 6 ) days
