Solid end mill
Monobloc cutter
DORMER S5292.0XD4 6706500

DORMER S5292.0XD4 6706500

Radius end mills S529

See technical information
References
Dormer:S5292.0XD4
Rubix:376A3915
EAN:7320760680490

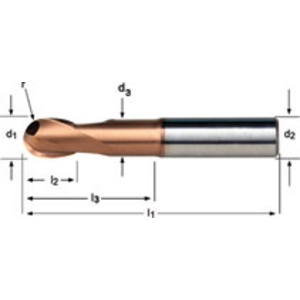

Ball-Nosed End Mill 2.0XD4 Dormer norm
Ball-Nosed End Mill 2.0XD4 Dormer norm
Ball-Nosed End Mill 2.0XD4 Dormer norm
Technical specifications
Diameter2 mm
Type of tailha
Tail diameter4 mm
See all Specifications

Product details : DORMER S5292.0XD4 6706500

Solid carbide (VHM) 2-flute radius end mill with short overhang. DIN 6335 HA cylindrical shank. 30° helix and -10° rake angle. TiSiN coated for hardened steel >49HRC.

Applications

• Alloyed steel hardened (49 - 55 HRC >1620 N/mm²)
• Alloyed steel hardened (55 - 63 HRC > 1980 N/mm²)

Technical specifications

Attributes
Diameter2 mm
Type of tailha
Tail diameter4 mm
Number of teeth2
Length of cut4 mm
Total length90 mm
Cutting materialcarbide
Coatingtisin
Machining materialhardened steel
Show UNSPSC/ECL@SS
£ 45.31 excl. VAT
/ Each
£ 54.37 incl. VAT
  • Usually arrives within 14 working days
