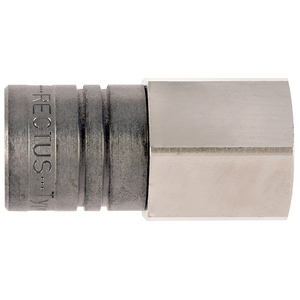

RECTUS SERIES 93KL 93KLIW21SVN

Parker's Series 93 is a modular integrated coupling and plug for installation in multi-coupling systems (series 08). Series 93 stands out for its high resilience, low coupling forces and great resistance to liquid media due to the special coating of the coupling body.

Markets:
- Machinery Construction

Features/Benefits:
- High resilience
- Low coupling forces
- Great resistance to liquid media due to the special coating of the coupling body

Applications:
- Molding
- Water and Cooling Lines

Connection Thread Size (inch): 1/2
Connection Type: Female Thread - parallel
Diameter: 8.1 mm (nominal)
Division: Low Pressure Connectors Europe Division
Flow Rate: 50
Hex Size: 24
Length: 48
Materials Of Construction: Steel nickel plated
Maximum Operating Pressure: 15
Maximum Operating Temperature: 100
Minimum Operating Temperature: -15
Seal Material: NBR
Type: Coupling
Valve Included: Yes
Version: Flat-Sealing
