TSUBAKI 0232062000-M5 RF06B-NP-2 BS ROLLER CHAIN FOR CORROSIVE ENV 5M

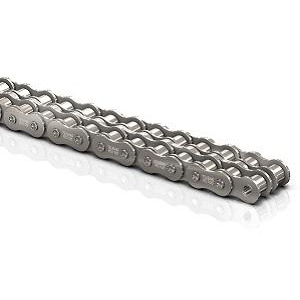

RF06B-NP-2 Tsubaki BS roller chain for corrosive environments
References
tsubaki:RF06B NP 2 RP
rubix:267A0621
manufacturer :0232062000
ean:8718472017564
Technical specifications
| Chain pitch | 9.525 mm |
|---|---|
| Profile | Duplex (2) |
| Chain | 06B-2 |
Product details : TSUBAKI 0232062000-M5 RF06B-NP-2 BS ROLLER CHAIN FOR CORROSIVE ENV 5M
BS NP Chain is a Tsubaki BS chain that has been plated with Nickel. NP Chain has a light corrosion resistance and an attractive appearance. NP Chain is suitable for outdoor conditions exposed to water. There is a 15% reduction in Maximum Allowable Load compared to the corresponding BS chain, so please take this into account when making your chain selection. It has a working temperature range of: -10°C to +60°C.
Technical specifications
Attributes
| Logistic Weight | 3775 g |
|---|---|
| Chain pitch | 9.525 mm |
| Profile | Duplex (2) |
| Chain | 06B-2 |
| Roller diameter | 6.35 mm |
| Inner width min. | 5.72 mm |
| Chain length | 5000 mm |
| Chain pin diameter | 3.28 mm |
| Weight | 3775 kg |
| Plate type | Other |
| Plate height | 8.2 mm |
Show UNSPSC/ECL@SS
£ 326.90 excl. VAT
/ Each
£ 392.28 incl. VAT
Usually arrives within 14 working days
