SKF SPHERICAL ROLLER BEARING 23068CCK/W33
Roller bearing
References
skf:23068 CCK/W33
rubix:104A9189
manufacturer :35795
ean:7316570791419
Technical specifications
| Inner diameter | 340 mm |
|---|---|
| Outer diameter | 520 mm |
| Width | 133 mm |
Product details : SKF SPHERICAL ROLLER BEARING 23068CCK/W33

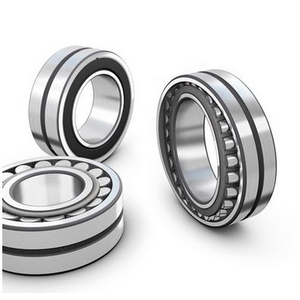

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 133x520x520 mm |
|---|---|
| Logistic Weight | 97400 g |
| Inner diameter | 340 mm |
| Outer diameter | 520 mm |
| Width | 133 mm |
| Bearing Clearance | CN |
| Series | 230C |
| Cage | Steel |
| Reference speed | 1000 rpm |
| Limit speed | 1300 rpm |
| Basic static load, radial - C0r | 4550 N |
| Basic dynamic load, radial - Cr | 2812 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 3,713.16 excl. VAT
/ Each
£ 4,455.79 incl. VAT
Usually arrives within 14 working days
