SMC KSH10-02S FITTING
Rotary Fitting
References
smc:KSH10-02S
rubix:124A3003
Technical specifications
| Material | PBT (Body);C3604BD (Stud, Holder, Guide);304 Stainless Steel (Chuck, Retainer);Polyacetal (Collet, Release Button, Snap Ring);NBR (O-Ring, Packing, Rotary Seal);Oil-Containing Polyacetal (Slide Bearing);Bearing Steel (Ball Bearing);304 Stainless Steel, NBR (Gasket) |
|---|---|
| Connection 1 | 10 mm |
Product details : SMC KSH10-02S FITTING

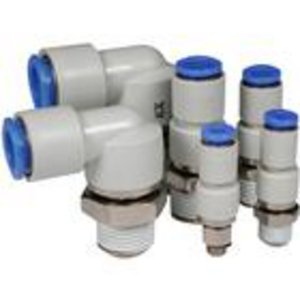

Rotary one-touch fitting series KS comes with a ball race bearing for oscillating or rotating applications. KS series comes in 5 tube sizes ranging from 4 to 12mm. One touch collet includes anti tube rotation mechanism. KS is suitable for copper free applications.
•Rotary, One-touch fitting (standard)
•Metric threads
•Tube OD: Ø4, Ø6, Ø8, Ø10, Ø12
•Maximum operating pressure: 1.0 MPa
•Ambient & fluid temperature: -5 to 60°C
Model: H (Male Connector)
Applicable Tube OD: Ø10 mm
Port Size: 02 (R[PT] 1/4)
Sealant: S [Sealant]
•Metric threads
•Tube OD: Ø4, Ø6, Ø8, Ø10, Ø12
•Maximum operating pressure: 1.0 MPa
•Ambient & fluid temperature: -5 to 60°C
Model: H (Male Connector)
Applicable Tube OD: Ø10 mm
Port Size: 02 (R[PT] 1/4)
Sealant: S [Sealant]
Technical specifications
Attributes
| Logistic Weight | 55 g |
|---|---|
| Material | PBT (Body);C3604BD (Stud, Holder, Guide);304 Stainless Steel (Chuck, Retainer);Polyacetal (Collet, Release Button, Snap Ring);NBR (O-Ring, Packing, Rotary Seal);Oil-Containing Polyacetal (Slide Bearing);Bearing Steel (Ball Bearing);304 Stainless Steel, NBR (Gasket) |
| Connection 1 | 10 mm |
| Profile | KS |
| Connection 2 | 1/4 in |
| Min. temperature | -5 °C |
| Max. temperature | 60 °C |
Show UNSPSC/ECL@SS
£ 22.70 excl. VAT
/ Each
£ 27.24 incl. VAT
Delivery usually within ( 4 ) days
