DORMER S76516.0 END MILL 16.00 MM 6706869
Roughmilling Cutters C765
References
dormer:S76516.0
rubix:2557007
ean:7320760684184

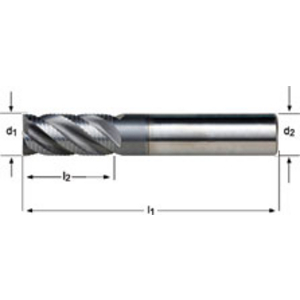

Technical specifications
| Diameter | 16 mm |
|---|---|
| Total length | 90 mm |
| Length of cut | 32 mm |
Product details : DORMER S76516.0 END MILL 16.00 MM 6706869
VHM 4 cutter rough cutter with short cutting edge and extending length. Differential gearing. DIN 6335 HA cylindrical shaft. 40° spiral and 10° cutter angle. AlCrN coated for steel <1200 N/mm². Stainless steel <850 N/mm². Cast iron. Titanium and nickel alloys <900 N/mm².
Applications
• Soft steel machine steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB>850<1200 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• Stainless steel - Austenitic (<320 HB <1100 N/mm²)
• Cast Iron lamellar (<150 HB>500 N/mm²)
• Cast Iron lamellar (>150<300 HB>500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Ductile cast iron/malleable cast iron (>200<300 HB>700<1000 N/mm²)
• Titanium alloy (<270 HB <900 N/mm²)
• Nickel alloy (<270 HB>900 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB>850<1200 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• Stainless steel - Austenitic (<320 HB <1100 N/mm²)
• Cast Iron lamellar (<150 HB>500 N/mm²)
• Cast Iron lamellar (>150<300 HB>500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Ductile cast iron/malleable cast iron (>200<300 HB>700<1000 N/mm²)
• Titanium alloy (<270 HB <900 N/mm²)
• Nickel alloy (<270 HB>900 N/mm²)
Technical specifications
Attributes
| Diameter | 16 mm |
|---|---|
| Total length | 90 mm |
| Length of cut | 32 mm |
| Number of teeth | 4 |
| Tail diameter | 16 mm |
| Type of tail | ha |
| Machining material | steel, stainless steel. cast iron, titanium and nickel alloys |
| Type | roughmilling cutter |
| Coating | aluminium chrome-nitride |
| Body material | carbide |
| Cutting angle | 40 ° |
Show UNSPSC/ECL@SS
£ 214.20 excl. VAT
/ Each
£ 257.04 incl. VAT
Usually arrives within 14 working days
