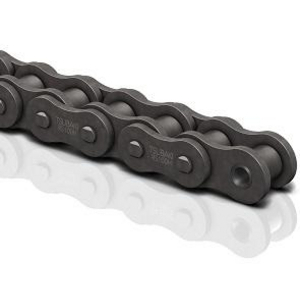

TSUBAKI 0141080002 RS80H-1 CONNECTING LINK WITH COTTERPIN
RS80H-1 connecting link with cotterpin
References
tsubaki:RS80H 1 CL CP
rubix:267A0076
manufacturer :0141080002
ean:8718472008418
Technical specifications
| Chain | ANSI H Series |
|---|---|
| Chain pitch | 25.4 mm |
Product details : TSUBAKI 0141080002 RS80H-1 CONNECTING LINK WITH COTTERPIN
H Series chain differs from the ANSI G8 Series chain in the thickness of the link plates. The link plates have the same thickness as the link plates of the next larger pitch size in ANSI G8 Series. The increased thickness of the link plates provides a 9% greater capacity for fatigue strength.
Technical specifications
Attributes
| Logistic Weight | 76 g |
|---|---|
| Chain | ANSI H Series |
| Chain pitch | 25.4 mm |
| Weight | 76 g |
| Inner width min. | 15.88 mm |
| Roller diameter | 15.88 mm |
| Plate height | 24.1 mm |
| Plate thickness | 4 mm |
| Pin length | 18.3 mm |
| Type | Heavy Duty Chain |
| Plate type | Round |
| Chain pin diameter | 7.94 mm |
Show UNSPSC/ECL@SS
£ 6.26 excl. VAT
/ Each
£ 7.51 incl. VAT
Usually arrives within 14 working days
