SNR UKP209HCC BEARING UNIT

SNR - Bearing Unit - UKP.209.H.CC

References

SNR:UKP209HCC

Rubix:206A2161

Manufacturer :UKP.209.H.CC

EAN:3413529554089

Inner diameter	40 mm
Fixation centre-to-centre distance	146 mm
Shaft Height	54 mm

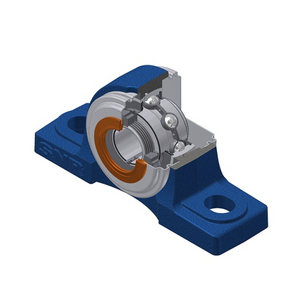

grey cast housing,radial insert ball bearing with adapter sleeve,seal with slinger

Attributes

Inner diameter	40 mm
Fixation centre-to-centre distance	146 mm
Shaft Height	54 mm
Material	cast iron
Total bearing width	50 mm
Outer diameter	85 mm
Diameter of fixation holes	17 mm
Mounting typ	adapter sleeve locking
Height	54 mm
Length	190 mm
Sealing	gumowa pokrywa uszczelniona z obu stron (żeliwo)
Lubrication	grease (re-lubricatable via m6x1 grease fitting)
Series	ukp200
Weight	2.41 kg
Number of holes	2
Basic static load, radial - C0r	20800 N
Basic dynamic load, radial - Cr	31850 N
Width	30 mm

Show UNSPSC/ECL@SS

£ 92.45 ^{excl. VAT}

/ Each

£ 110.94 ^{incl. VAT}
