SNR UCPAE206L3 BEARING UNIT
SNR - Bearing Unit - UCPAE206L3
References
snr:UCPAE206L3
rubix:206A0879
ean:3413521119552
Technical specifications
| Inner diameter | 30 mm |
|---|---|
| Fixation centre-to-centre distance | 76.2 mm |
| Shaft Height | 42.9 mm |
Product details : SNR UCPAE206L3 BEARING UNIT

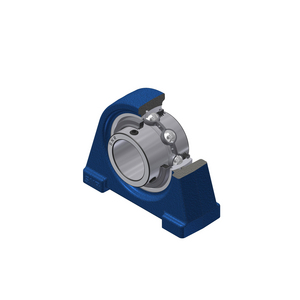

grey cast housing, radial insert ball bearing with socket set screws,triple lip seal
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 100x85x55 mm |
|---|---|
| Logistic Weight | 1000 g |
| Inner diameter | 30 mm |
| Fixation centre-to-centre distance | 76.2 mm |
| Shaft Height | 42.9 mm |
| Series | UCPAE200 |
| Weight | 0.92 kg |
| Number of holes | 2 |
| Basic static load, radial - C0r | 11200 N |
| Basic dynamic load, radial - Cr | 19500 N |
| Outer diameter | 62 mm |
| Width | 38.1 mm |
Show UNSPSC/ECL@SS
£ 22.88 excl. VAT
/ Each
£ 27.46 incl. VAT
Usually arrives within 14 working days
