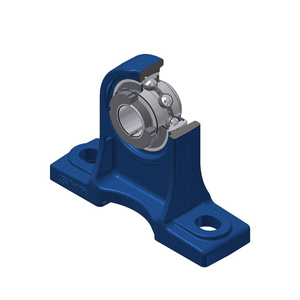

SNR UKPH208H BEARING UNIT

SNR - Bearing Unit - UKPH.208H

References

SNR:UKPH208H

Rubix:206A2354

Manufacturer :UKPH.208H

EAN:3413529505678

Inner diameter	35 mm
Fixation centre-to-centre distance	137 mm
Shaft Height	100 mm

grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger

Attributes

Inner diameter	35 mm
Fixation centre-to-centre distance	137 mm
Shaft Height	100 mm
Material	grey cast iron
Total bearing width	46 mm
Outer diameter	80 mm
Clamping	46 mm
Diameter of fixation holes	17 mm
Mounting typ	adapter sleeve
Height	100 mm
Length	184 mm
Sealing	uszczelniony wkład (slinger)
Lubrication	relubricatable (grease nipple m6x1)
Series	ukph200
Weight	2.9 kg
Number of holes	2
Basic static load, radial - C0r	18200 N
Basic dynamic load, radial - Cr	29600 N
Width	29 mm

Show UNSPSC/ECL@SS

£ 37.08 ^{excl. VAT}

/ Each

£ 44.50 ^{incl. VAT}
