SKF SPHERICAL ROLLER BEARING 23976CC/W33
Spherical Roller Bearing
References
skf:23976 CC/W33
rubix:105A0216
manufacturer :36498
ean:7316577298355
Technical specifications
| Inner diameter | 380 mm |
|---|---|
| Outer diameter | 520 mm |
| Width | 106 mm |
Product details : SKF SPHERICAL ROLLER BEARING 23976CC/W33

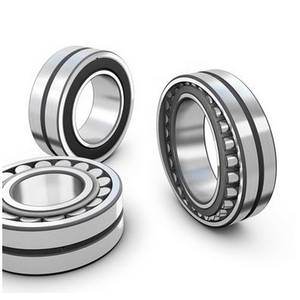

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 106x520x520 mm |
|---|---|
| Logistic Weight | 65000 g |
| Inner diameter | 380 mm |
| Outer diameter | 520 mm |
| Width | 106 mm |
| Bearing Clearance | cn |
| Series | 239c |
| Cage | steel |
| Reference speed | 1100 rpm |
| Limit speed | 1200 rpm |
| Basic static load, radial - C0r | 3800000 N |
| Basic dynamic load, radial - Cr | 1730000 N |
| Sealing | open |
Show UNSPSC/ECL@SS
£ 4,239.10 excl. VAT
/ Each
£ 5,086.92 incl. VAT
In stock: Next day delivery
