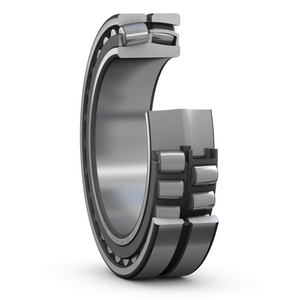

SKF 23140 CCK/C2W33 ROLLER BEARING
Spherical Roller Bearing
References
skf:23140 CCK/C2W33
rubix:258A4284
manufacturer :88848
ean:7316577000729
Technical specifications
| Inner diameter | 200 mm |
|---|---|
| Outer diameter | 340 mm |
| Width | 112 mm |
Product details : SKF 23140 CCK/C2W33 ROLLER BEARING
Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Strengths
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
Technical specifications
Attributes
| Logistic Weight | 41200 g |
|---|---|
| Inner diameter | 200 mm |
| Outer diameter | 340 mm |
| Width | 112 mm |
| Bearing Clearance | C2 |
| Series | 231 C |
| Reference speed | 1500 rpm |
| Limit speed | 1900 rpm |
| Basic static load, radial - C0r | 2360000 N |
| Basic dynamic load, radial - Cr | 1380000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 1,777.45 excl. VAT
/ Each
£ 2,132.94 incl. VAT
Usually arrives within 14 working days
