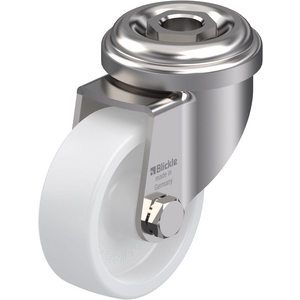

BLICKLE-LRXAPO.50G S/STEEL L/DUTY SWIVELCASTOR BOLT HOLE FITTING NYLON
Stainless steel light duty swivel castor, with bolt hole Nylon wheel
References
blickle:LRXA-PO 50G
rubix:204A0900
manufacturer :754995
ean:4047526082024
Technical specifications
| Load capacity | 75 kg |
|---|---|
| Wheel diameter | 50 mm |
| Wheel width | 18 mm |
Product details : BLICKLE-LRXAPO.50G S/STEEL L/DUTY SWIVELCASTOR BOLT HOLE FITTING NYLON
Bracket: LRXA series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: PO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 141 g |
|---|---|
| Load capacity | 75 kg |
| Wheel diameter | 50 mm |
| Wheel width | 18 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Polyamide |
| Shore D Hardness | 70 Shore |
| Type of bearing | Plain bore |
| Running sole / tire colour | Beige |
| Min. temperature | -25 °C |
| Max. temperature | 80 °C |
| 69 mm | |
| 18 mm |
Show UNSPSC/ECL@SS
£ 25.58 excl. VAT
/ Each
£ 30.70 incl. VAT
Usually arrives within 14 working days
