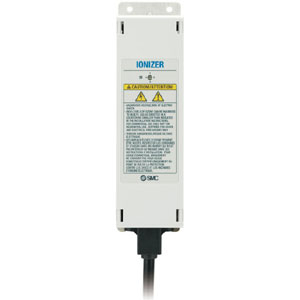

SMC IZTP43-L IZTP43 HIGH-VOLTAGE POWER SUPPLY MODULE

The IZTP power supply module is the high-voltage source component for the IZT static control system.  Modules generate ions in AC (+/- blended ions), DC (fixed polarity ions), or Dual AC (low amplitude +/- blended ions) mode, depending on selection and as directed by the controller.  This component is available individually to expand an existing system, or as a replacement.  A complete system consists of any mixture of 1 to 4 IZTB bars and/or IZTN nozzles, an IZTP power supply module for each ionizer, and a single IZTC controller, plus cables and accessories as required.  All components can be ordered separately.

•High-voltage power supply module separated from the bar
•Easy mounting and removal using connector
•Can be mounted separately from the controller or other high-voltage power supply modules
•DIN rail mounting bracket available.

Type: L (IO-Link)
Model: 43 (AC Type, IZTN43)
DIN Rail Mounting Bracket: None
