TSUBAKI 5003000200 TFS-20 CAM CLUTCH
TFS-45 CAM CLUTCH
References
tsubaki:TFS20
rubix:267A0296
manufacturer :5003000200
ean:8718472212303
Technical specifications
| Inner diameter | 27 mm |
|---|---|
| Outer diameter | 52 mm |
| Width | 21 mm |
Product details : TSUBAKI 5003000200 TFS-20 CAM CLUTCH

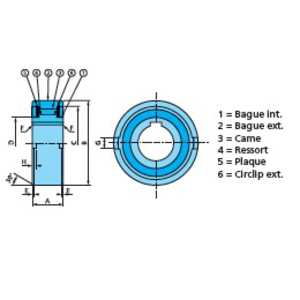

Tsubaki TFS Series clutches are designed for press fit installation. Outside dimensions are the same as 63** ball bearings. TFS Clutches have two vertical key ways on the outer races. The usage of bearing support is compulsory.
Technical specifications
Attributes
| Logistic Weight | 229 g |
|---|---|
| Inner diameter | 27 mm |
| Outer diameter | 52 mm |
| Width | 21 mm |
| Series | TFS |
| Weight | 0.229 kg |
| Reference speed | 1300 rpm |
| Auth. torque | 84 N.m |
| Standard | DIN 6885. 1;DIN 6885. 3 |
Show UNSPSC/ECL@SS
£ 128.30 excl. VAT
/ Each
£ 153.96 incl. VAT
Usually arrives within 14 working days
