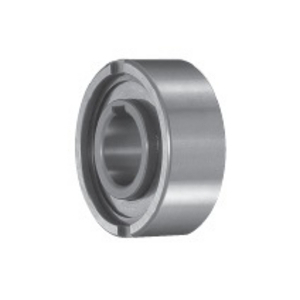

TSUBAKI 5003000450 TFS-45 CAM CLUTCH
TFS-45 CAM CLUTCH
References
tsubaki:TFS45
rubix:267A0301
manufacturer :5003000450
ean:8718472212419
Technical specifications
| Inner diameter | 45 mm |
|---|---|
| Outer diameter | 100 mm |
| Width | 36 mm |
Product details : TSUBAKI 5003000450 TFS-45 CAM CLUTCH
Tsubaki TFS Series clutches are designed for press fit installation. Outside dimensions are the same as 63** ball bearings. TFS Clutches have two vertical key ways on the outer races. The usage of bearing support is compulsory.
Technical specifications
Attributes
| Logistic Weight | 1360 g |
|---|---|
| Inner diameter | 45 mm |
| Outer diameter | 100 mm |
| Width | 36 mm |
| Series | TFS |
| Weight | 1.36 kg |
| Reference speed | 1100 rpm |
| Total bearing width | 36 mm |
| Auth. torque | 756 N.m |
| Standard | DIN 6885. 3 |
Show UNSPSC/ECL@SS
£ 339.47 excl. VAT
/ Each
£ 407.36 incl. VAT
Usually arrives within 14 working days
