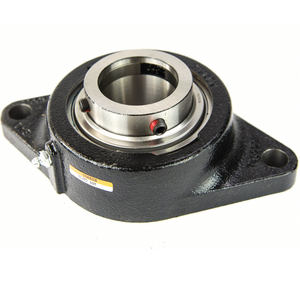

TIMKEN YCJT1 SGT 2-BOLT FLANGED BALL BEARING UNIT

Two Bolt flanged Ball Bearing Unit with Setscrew with Shaft Guarding Technology®

References

Timken:YCJT1 SGT

Rubix:397A8341

EAN:0087796266391

Inner diameter	25.4 mm
Width	27.9 mm
Fixation centre-to-centre distance	99.2 mm

Inch flange bearing housing unit Fafnir

Two-bolt flange bearing housing unit with ball bearing from Timken (Fafnir) for 1-inch shafts. With Shroud Seal and SGT (Shaft Guarding Technology).

Attributes

Inner diameter	25.4 mm
Width	27.9 mm
Fixation centre-to-centre distance	99.2 mm
Material	polymer
Sealing	one rubber seal and one metal shield
Series	ycjt
Total bearing width	34.85 mm
Clamping	12.7 mm
Diameter of fixation holes	11.5 mm
Basic static load, radial - C0r	7800 N
Basic dynamic load, radial - Cr	15500 N
Weight	0.61 kg
Mounting typ	flange bearing housing unit with ball bearing, two-bolt flange (set-screw locking, sgt)

Show UNSPSC/ECL@SS

£ 61.07 ^{excl. VAT}

/ Each

£ 73.28 ^{incl. VAT}
