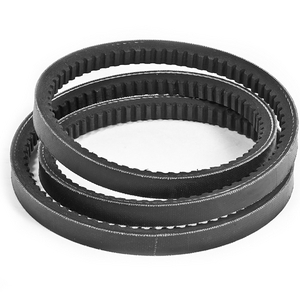

GATES ISO WEDGE BELT SPA3550E
VULCOPLUS wrapped, narrow section V-belt
References
gates:SPA3550 VULCOPLUS
rubix:1429696
manufacturer :9425-63550
ean:5414465272868
Technical specifications
| Profile | SPA |
|---|---|
| Pitch length | 3550 mm |
Product details : GATES ISO WEDGE BELT SPA3550E
Belt compound converts tensile forces on the sidewalls into longitudinal forces in the tensile member. Textile cover provides grip and protects against abrasion. Tensile member withstands occasional or recurrent shockloads. Excellent resistance to oil, heat, ozone, sunlight, weather and ageing.
Strengths
•Excellent performance/cost ratio
Suited for a wide range of light- to medium-duty power transmission applications and motion transfer
Match system: all sizes meet Gates UNISET tolerances, they can be installed without matching
Sections and nominal dimensions
Service line belts
Suited for a wide range of light- to medium-duty power transmission applications and motion transfer
Match system: all sizes meet Gates UNISET tolerances, they can be installed without matching
Sections and nominal dimensions
Service line belts
Applications
High speed;high speed ratios or pulley diameters;industrial heavy-duty
Technical specifications
Attributes
| Profile | SPA |
|---|---|
| Pitch length | 3550 mm |
| Upper width | 13 mm |
| Height | 10 mm |
| Outer length | 3568 mm |
| Material | Polyester |
Show UNSPSC/ECL@SS
£ 10.73 excl. VAT
/ Each
£ 12.88 incl. VAT
Sold out
